Product Description:

The plugging cross is suitable for the plugging maintenance and renovation projects of low and medium pressure small diameter pipelines such as oil, natural gas, chemical industry and municipal administration, and is suitable for barrel plugging technology.

Technical parameters:

Pipe fitting design pressure rating: 1.6MPa, 2.5MPa, Class150 MPa, and other pressure design required by users.
Design temperature range:-20 ℃ ~ 200 ℃.
Design specifications: GB50251, GB50253, ASME B31.3, B31.4 and B31.8 or as per customer requirements.
Product material: Q345R, ASME A515, A516 and other materials required by users.

Plugging four-way optional accessories:

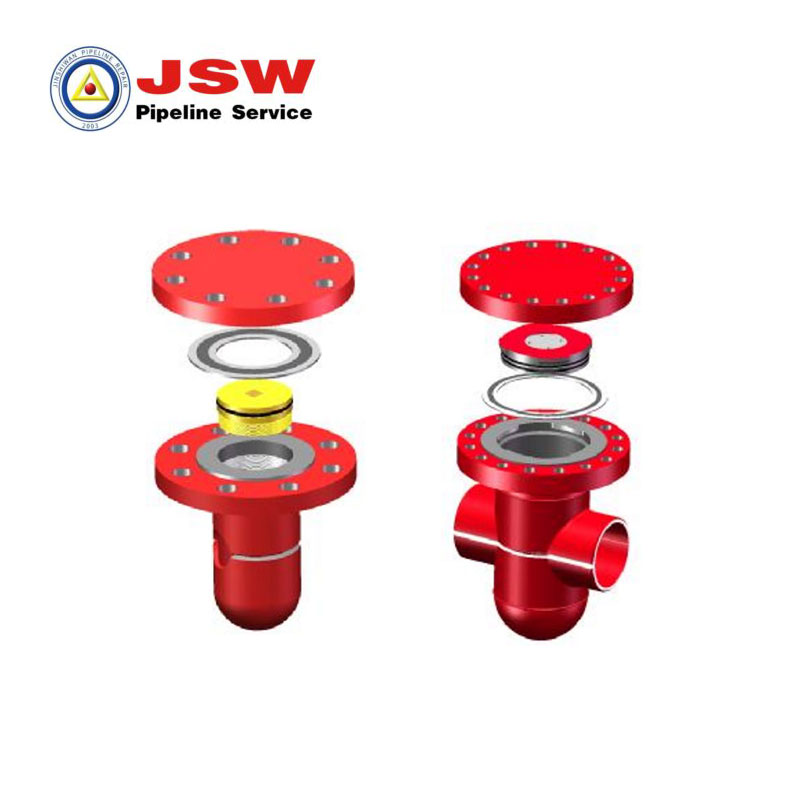

Welding four-way flange, plug block, blind plate, double-end stud, nut, gasket, sealing gasket and sealing rubber ring.

Number example:

Remarks:Four-way sealing dimensions and flange interface dimensions can be customized according to customer requirements.
