Hydraulic Self-Propelled Pipe Cutting Machine
Equipment Description
The Hydraulic Self-Propelled Pipe Cutter is specifically designed for cold circumferential cutting of pipelines transporting flammable/explosive media (oil, gas, chemicals) without hot work requirements.
Key Features:
- Cold Cutting Technology: Spark-free operation for hazardous environments
- Compact Design: Lightweight for confined space operations
- Material Compatibility: Cuts carbon steel, alloy steel, and stainless steel pipes
- Modular System: Quick assembly/disassembly for maintenance
- Precision Cutting: Uses hydraulic-powered disc milling cutter with:
- Manual screw feed for initial penetration
- Auto-crawling gear for circumferential cutting

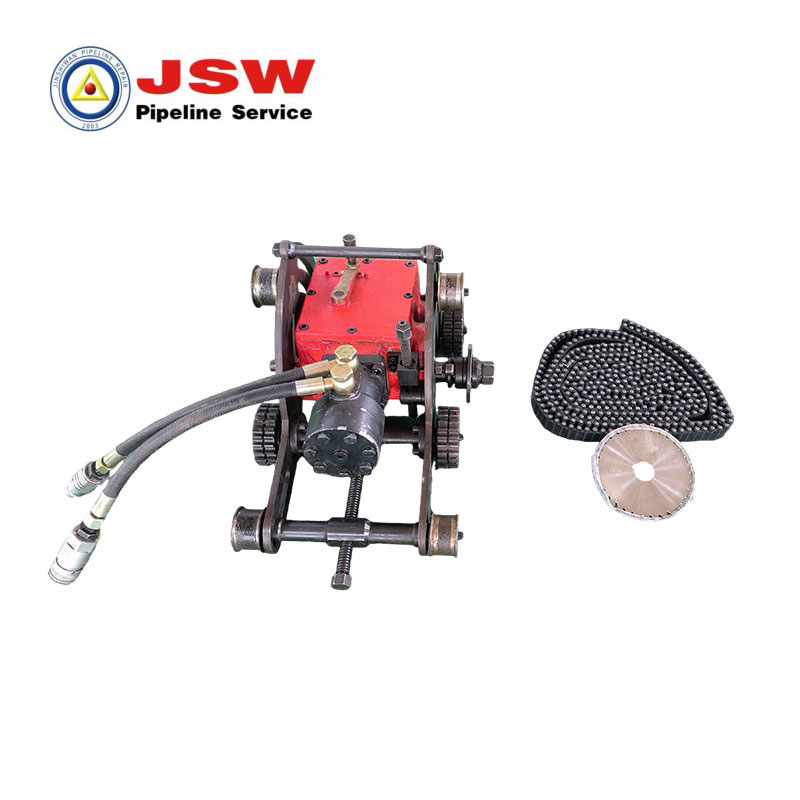

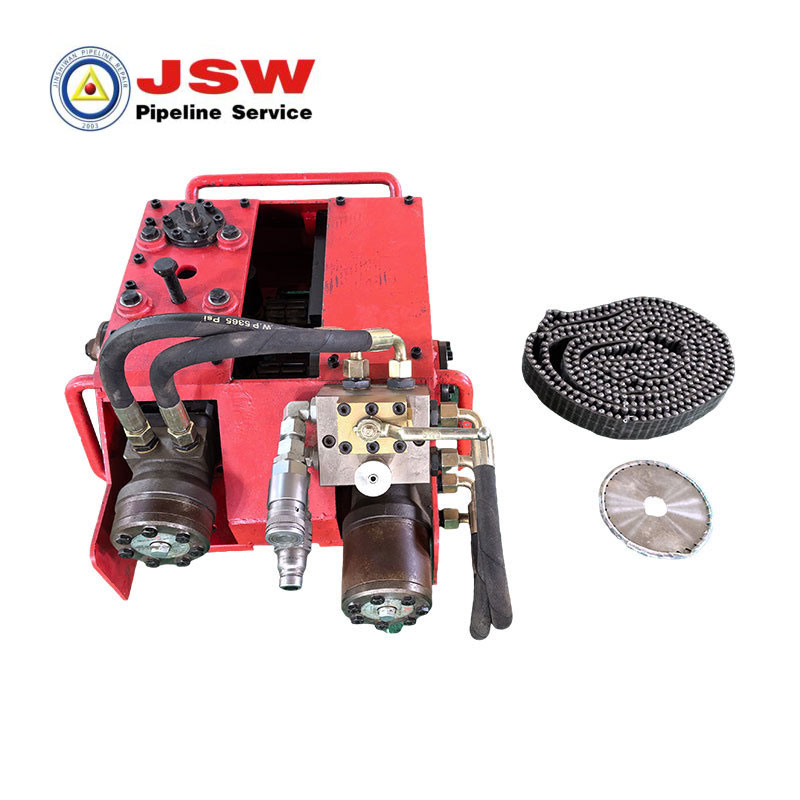

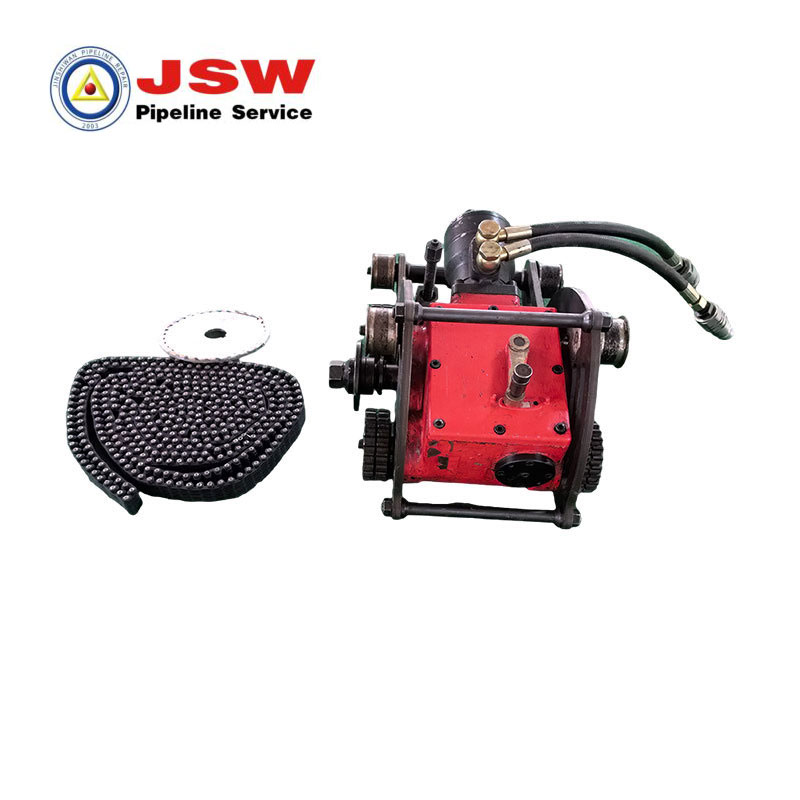

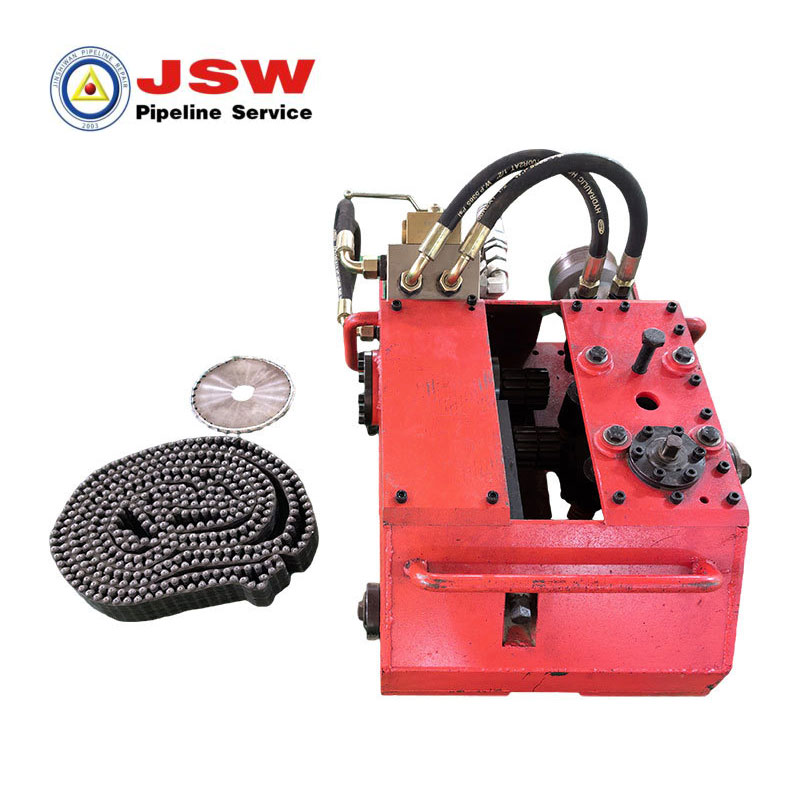

Standard Components:
- Main cutter unit
- Track chain system
- Cutting blades
- Transport case
Technical Specifications
| Parameter | HPCC-1672 | HPCC-1248 |
|---|---|---|
| Pipe Range | DN700-DN1800 (NPS 28-72) | DN250-DN800 (NPS 10-32) |
| Max. Wall Thickness | 38mm (1.5″) | 14mm (0.55″) |
| Feed Mechanism | Manual | Manual |
| Crawling Mode | Auto-Crawling Gear | Auto-Crawling Gear |
| Cutter Speed | 60-85 RPM | 110-160 RPM |
| Crawling Speed | 60-100mm/min (2.4-3.9″/min) | 60-100mm/min (2.4-3.9″/min) |
| Hydraulic Pressure | 5.0-10.0 MPa (725-1,450 psi) | 5.0-10.0 MPa (725-1,450 psi) |
| Dimensions (L×W×H) | 695×510×280mm (27.4×20.1×11″) | 450×350×300mm (17.7×13.8×11.8″) |
