Pipeline Equipment

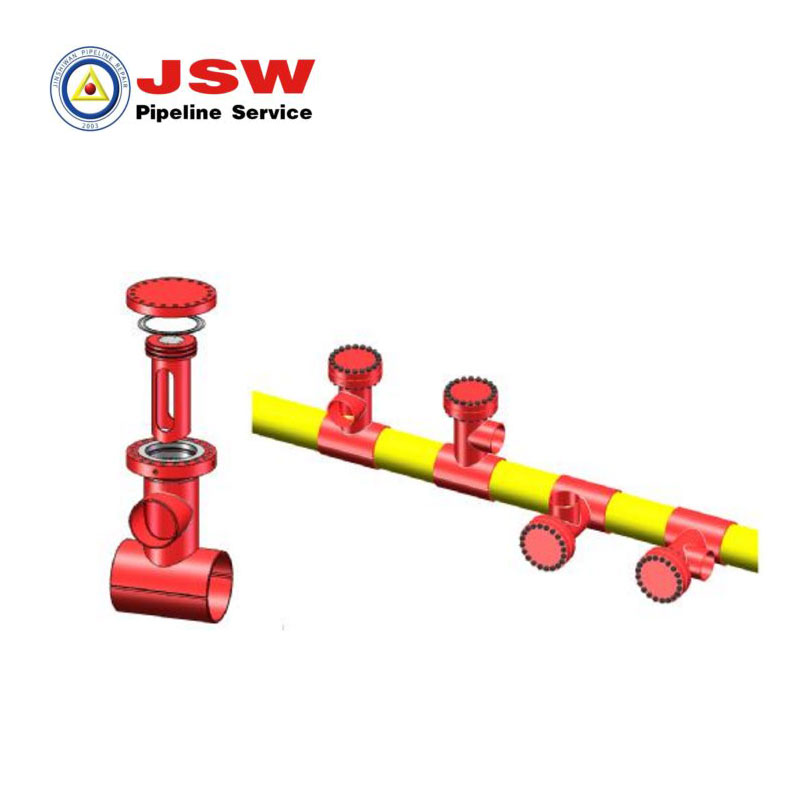

KS Plug Pipe Fittings with Open Holes

Plug-pipe-fittings-with-open-holes
Get a Quote
Email Us
Category

Product Description:

The plug is suitable for the non-stop transmission and pressure opening of oil, natural gas, chemical, municipal and other pipelines, and the valve can be removed after the opening is completed.

Product Features:

Pipe fitting design pressure rating: 4.0MPa, 6.3MPa, 10.0Mpa, Class150, Class300, Class600, Class900 and other pressure design required by users.
Design temperature range:-20 ℃ ~ 200 ℃.
Material: Q345R,ASME A515,A516 materials, and can be customized according to user needs.

Opening cross-way optional accessories:

Welding four-way flange, plug block, blind plate, top block, jacking wire, double-headed stud, nut, gasket, sealing gasket and sealing rubber ring.

Number example:

KS 457 406 400 64 –001
Product Type Supervisor Specifications Branch pipe specification Valve Specifications Valve pressure rating — Sequence number

Note:The size of the opening plug tee can be customized according to user requirements.
