.Q Inflatable Pipe Tee

Q-Inflatable-Pipe-Tee
Get a Quote
Email Us
Category

Product Description

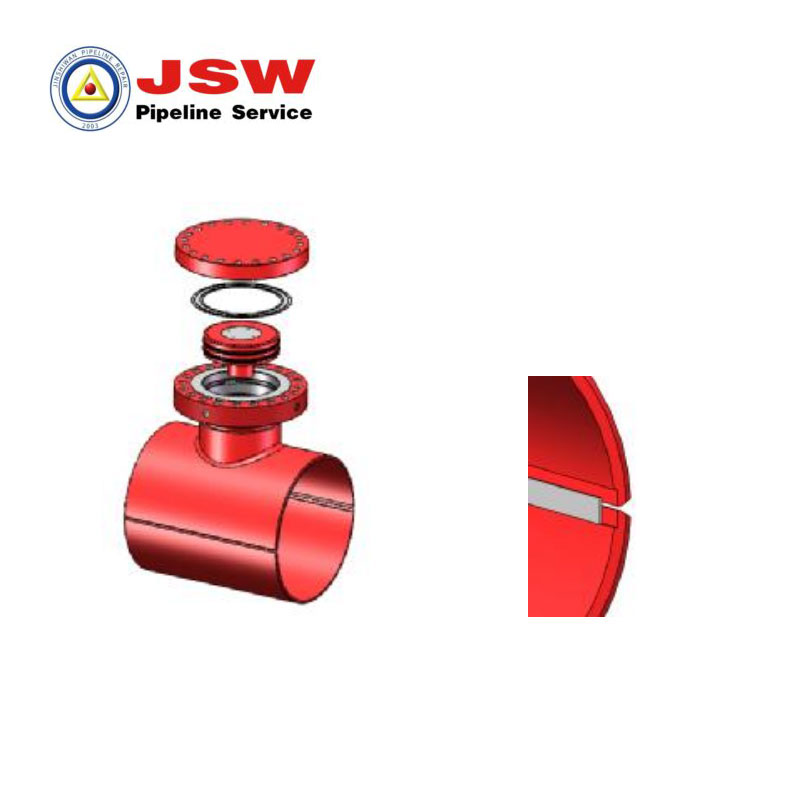

Inflatable Tee Fitting is designed for isolation and bypass applications in petroleum, natural gas, chemical, and municipal pipeline systems, suitable for low, medium, high, and ultra-high pressure pipeline repair and modification projects. This specialized fitting accommodates isolation airbags for temporary pipeline shutdowns.

Technical Specifications

Parameter Details
Pressure Rating 4.0MPa, 6.3MPa, 10.0MPa
Class 150/300/600/900
(Custom ratings available)
Temperature Range -20℃ to +200℃
Design Standards GB50251, GB50253
ASME B31.1/B31.3/B31.8
(Custom standards accepted)
Materials Q345R, ASME A515/A516
(Other materials upon request)

Optional Accessories

Welded tee + flange，Plugging insert，Blind flange，Thrust block，Jacking screw，Double-ended stud，Nuts，Gaskets，Sealing rings

Part Numbering System

Example: Q 457 100 250 63-001

Code Segment Description
Q Product Type (Inflatable Tee)
457 Pipeline Size
100 Pipeline Pressure Rating
250 Valve Specification
63 Valve Pressure Class
001 Serial Number

Note: Custom dimensions and flange connections available per customer requirements.
