SV Split Sandwich Valve Series

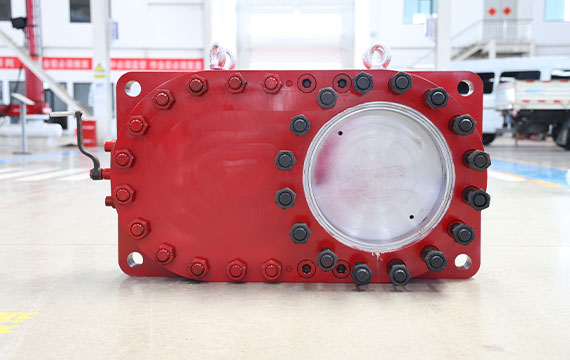

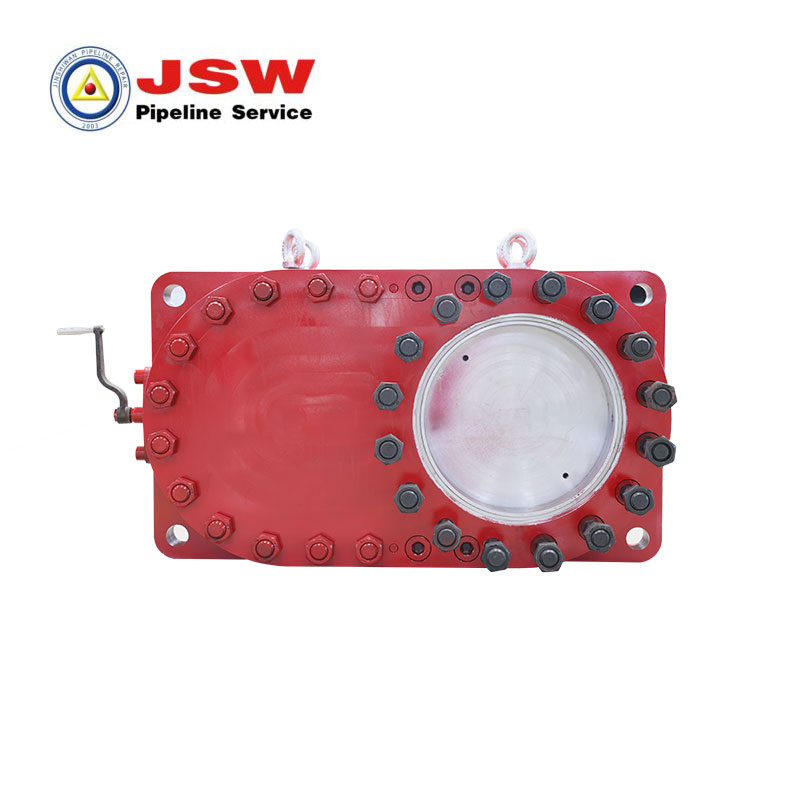

Sandwich-Valve

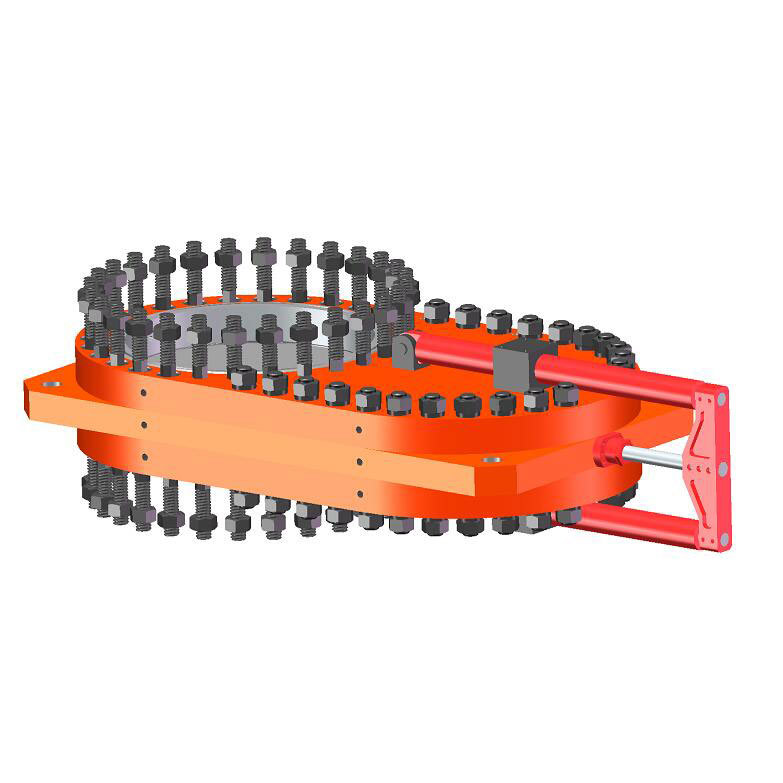

SV Split Valve Series-2

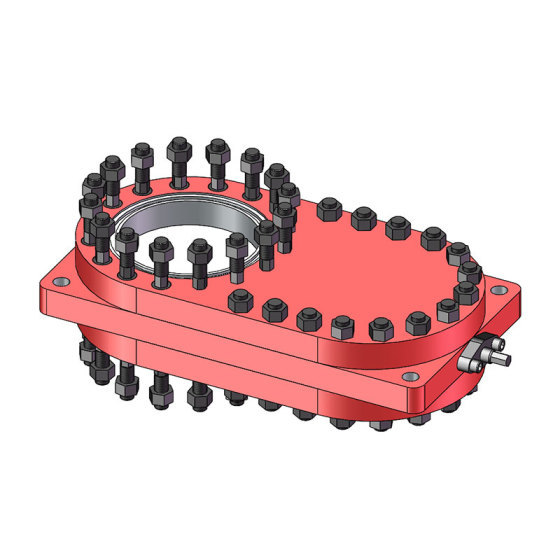

SV Split Valve Series
Get a Quote
Email Us
Category

Equipment description:

The split valve is a special equipment used to connect the plugging pipe fittings and the binder in the opening and plugging operation. The equipment is suitable for the construction of flammable, explosive, toxic and harmful crude oil, chemical industry, liquefied petroleum gas, coal gas, natural gas and other liquids and gases.

Device characteristics:

  • Switch type: manual type and hydraulic type
  • The inner diameter size is larger than the traditional valve

The valve height is lower than the traditional valve, effectively shorten the equipment stroke.

Equipment parameters:

Specifications

Pressure rating and equipment number

NPS

DN

Class150

Class300

Class600

6.3MPa

10.0MPa

2

50

SV02-150

SV02-300

SV02-600

SV50-63

SV50-100

4

100

SV04-150

SV04-300

SV04-600

SV100-63

SV100-100

6

150

SV06-150

SV06-300

SV06-600

SV150-63

SV150-100

8

200

SV08-150

SV08-300

SV08-600

SV200-63

SV200-100

10

250

SV10-150

SV10-300

SV10-600

SV250-63

SV250-100

12

300

SV12-150

SV12-300

SV12-600

SV300-63

SV300-100

14

350

SV14-150

SV14-300

SV14-600

SV350-63

SV350-100

16

400

SV16-150

SV16-300

SV16-600

SV400-63

/

18

450

SV18-150

SV18-300

SV18-600

/

/

20

500

SV20-150

SV20-300

SV20-600

/

/

24

600

SV24-150

SV24-300

SV24-600

/

/

26

650

SV26-150

SV26-300

SV26-600

/

/

28

700

SV28-150

SV28-300

SV28-600

/

/

30

750

SV30-150

SV30-300

SV30-600

/

/

32

800

SV32-150

SV32-300

SV32-600

/

/

34

850

SV34-150

SV34-300

SV34-600

/

/

36

900

SV36-150

SV36-300

SV36-600

/

/

40

1000

SV40-150

SV40-300

SV40-600

/

/



Note: 1. The connection size can be customized according to user needs. 2. Manual switch is adopted for splint valve below DN500, and hydraulic switch is adopted for DN500 and above.

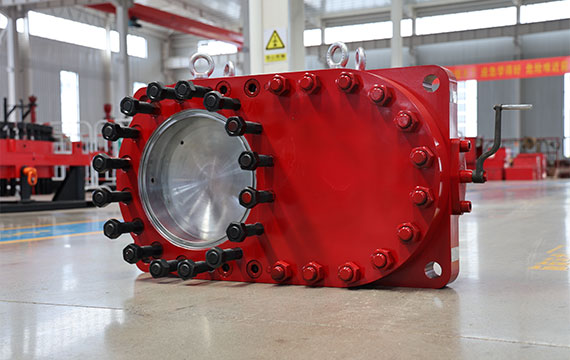

Sandwich-Valve
