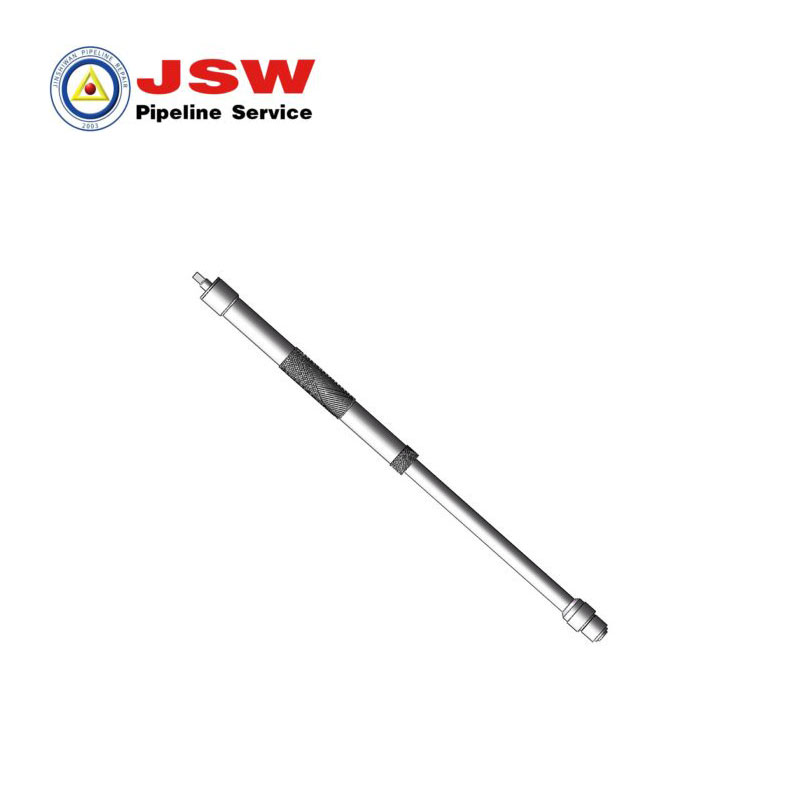

HT-A0104 Hot Tapping Machine Series

HT-A0104-Hot-Tapping-Machine-Series
Get a Quote
Email Us
Category

Equipment description:

This equipment is dedicated to the pipeline hole equipment. Mainly used in the pipeline does not stop the transmission medium, does not reduce the pressure, to ensure the normal operation of the pipeline, the pipeline maintenance, repair, add bypass equipment.

Device characteristics:

  • Manual drive
  • The connection form of the host and the hole joint is threaded connection;
  • The machine is light in weight, flexible and convenient to operate

Technical parameters:



Parameter Name

A0104

B0104

Minimum opening size

25mm

25mm

Maximum opening size

100 ㎜

100 ㎜

Maximum design pressure

6.3MPa 10MPa optional

Maximum operating temperature

200℃

200℃

Spindle stroke

550 ㎜

550 ㎜

Spindle diameter

25mm

25mm

Drive mode

Manual

Manual/Hydraulic

Maximum required hydraulic flow

/

25L/min

Feed speed-manual

3㎜/rev

3㎜/rev

Rotation speed of barrel knife

/

12~60r/min



Note: design pressure, hole size, hole opening machine stroke can be customized according to user requirements.

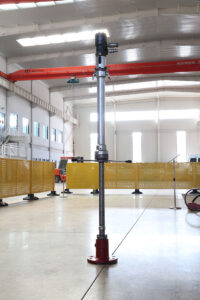

HT-A0104-HT-A0102-B0104-Tapping-Machine-Series

Optional Accessories

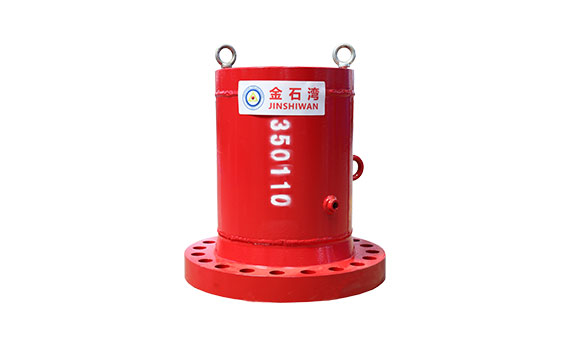

Hot Tapping Coupler

Hot-Tapping-Coupler-2



Specification HT-A0102 HT-A0104 HT-B0104
NPS DN Product Code Product Code Product Code
1/2 15 KKLX-A-P-1/2 / /
3/4 20 KKLX-A-P-3/4 / /
1 25 KKLX-A-P-1 KKLX-A-P-1 KKLX-B-P-1
1 1/4 32 KKLX-A-P-1 1/4 KKLX-A-P-1 1/4 KKLX-B-P-1 1/4
1 1/2 40 KKLX-A-P-1 1/2 KKLX-A-P-1 1/2 KKLX-B-P-1 1/2
2 50 KKLX-A-P-2 KKLX-A-P-2 KKLX-B4-P-2
2 1/2 65 / KKLX-A-P-2 1/2 KKLX-B-P-2 1/2
3 80 / KKLX-A-P-3 KKLX-B-P-3
4 100 / KKLX-A-P-4 KKLX-B-P-4

Note: The connection dimensions of the coupler can be customized according to user requirements.

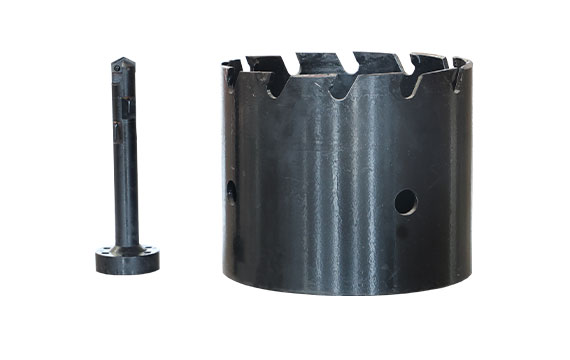

Hole Cutter

Hole Cutter





NPS DN Outer Diameter of Hole Cutter (mm) Product Code
2 50 40 LC-0104-2
2½ 65 50 LC-0104-2½
3 80 70/85 LC-0104-3
4 100 90/97 LC-0104-4
