Product Overview

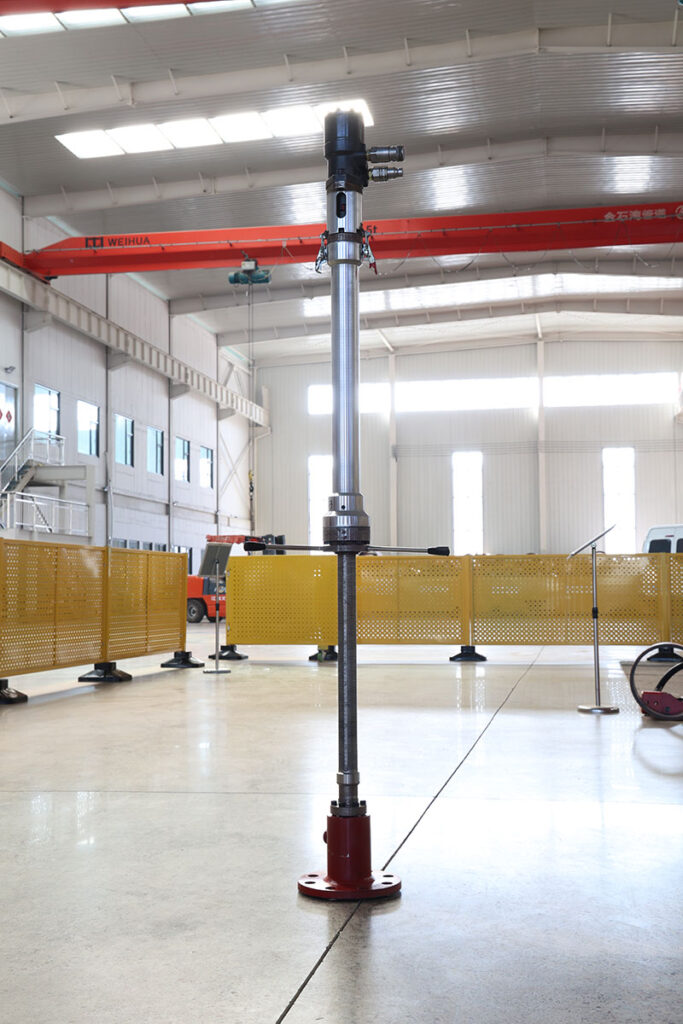

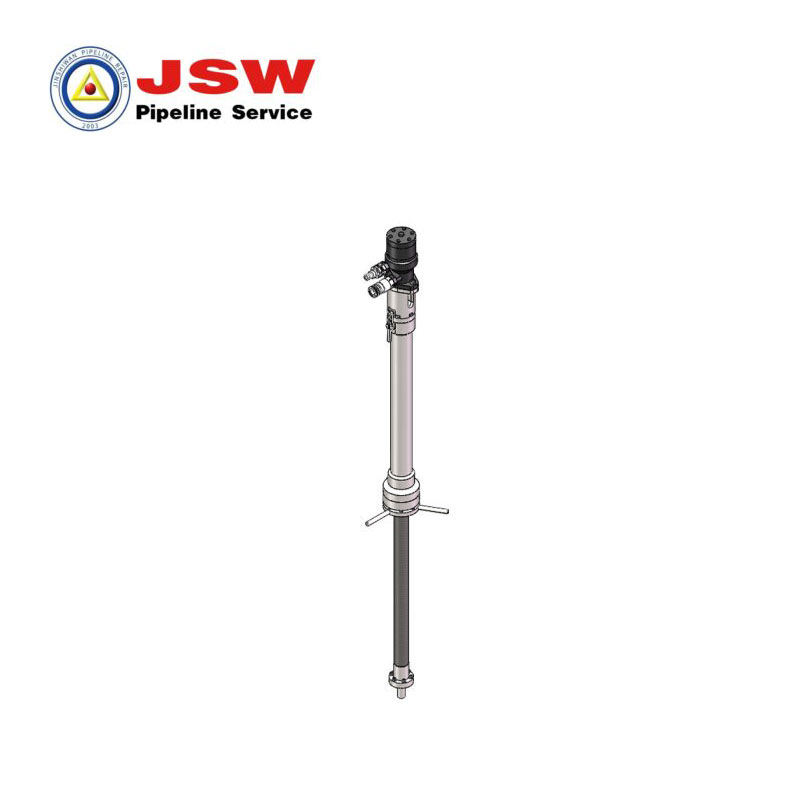

The HT-B0104 is a professional-grade, hydraulically driven hot tapping machine designed for pipeline contractors and oil & gas companies. It allows you to safely tap into pressurized pipelines—for connections, repairs, or bypasses—without stopping the flow of product, eliminating costly downtime and maintaining operational integrity.

Core Advantages:

• Zero Shutdown Operations: Execute taps on live pipelines up to 10MPa, ensuring continuous service and revenue flow.

• Enhanced Safety & Control: Hydraulic drive provides consistent, powerful, and controllable cutting force for safer operations under pressure compared to manual methods.

• Proven Reliability & Flexibility: With a maximum hole size of 100mm and adaptable fittings, it handles a wide range of pipeline maintenance and modification tasks.

• Operational Efficiency: Features like a 550mm spindle stroke and adjustable cutting speed (12-60 RPM) enable precise and efficient work on various pipe schedules.

Detailed Product Description & Technical Specifications

How It Works: The Hot Tapping Process

The HT-B0104 machine is mounted onto a pre-installed hot tap fitting (or flange) on the live pipeline. A patented sealing system isolates the machine. The hydraulic unit drives the cutter and pilot drill through the pipe wall to create a clean, full-size hole. The coupon is retained, the cutter retracted, and the temporary isolation valve is closed, allowing the machine to be removed—all while the pipeline remains in full service.

Technical Specifications Table

Core Components & Systems

1. Hydraulic Power Unit: Provides reliable, high-torque power for consistent cutting performance. The heart of the machine.

2. Robust Spindle & Gearbox: Precision-engineered with a 30mm diameter spindle and 550mm stroke for deep cuts and stability.

3. Flange Connection Interface: Ensures a secure, leak-proof connection to the hot tap fitting for maximum safety during pressurized operations.

4. Adaptable Tooling System: Compatible with a full suite of tools including pilot drills (DB series) and hole cutters (LC series) for DN50 to DN100 taps.

Solving Core Pain Points & Application Scenarios

What Challenges Does the HT-B0104 Solve?

• Avoiding Costly Shutdowns: Need to add a connection or repair a line but cannot afford the massive revenue loss from stopping flow? Our equipment provides the solution.

• Ensuring Job Site Safety: Worried about the risks of live pipeline work? The controlled hydraulic system and secure flange connection minimize hazards.

• Meeting Project Deadlines: Facing tight schedules for pipeline upgrades or emergency repairs? This machine delivers fast, reliable service.

• Finding Versatile Equipment: Working on various pipe sizes and pressure ratings? The HT-B0104’s range and optional fittings offer the needed flexibility.

Primary Application Scenarios

• Emergency Bypass Installation: Quickly install a bypass around a damaged pipeline section to maintain supply during repairs.

• New Connection Tie-In: Safely connect new branch lines to existing operational transmission or distribution mains.

• Preventive Maintenance & Sampling: Install probes or gauges for condition monitoring without interrupting service.

• Pipeline Integrity Programs: Facilitate in-service inspection and rehabilitation activities.

Comparative Advantage: Why Choose the HT-B0104?

vs. Traditional Welding on Live Lines:
Eliminates the extreme danger and complex permitting for hot work. It’s a cold-cutting, inherently safer process.

vs. Manual Tapping Machines:
Hydraulic power delivers more consistent force for tougher materials and larger holes, reducing operator fatigue and improving cut quality and speed.

vs. Other Hot Tapping Equipment:
As a specialized manufacturer, we focus on robust design (e.g., 30mm spindle, 10MPa rating) and direct compatibility with a wide array of standard fittings, offering excellent value and reliability.

Quality, Safety & Standards

We are a committed supplier of high-integrity pipeline tools. While specific certifications depend on project requirements, our company adheres to stringent quality control protocols aligned with industry best practices for pressure-containing equipment. The HT-B0104 is designed with safety as a priority, featuring secure mechanical connections and controlled operation.

Service & Support Ecosystem

We are more than just a machine manufacturer; we are your partner in pipeline integrity.

• Pre-Sale Consulting: Our experts help you select the right equipment and tooling for your specific application.

• Comprehensive Training: We provide operational and safety training to ensure your team is confident and proficient.

• Global Support & Warranty: Backed by a standard warranty, with readily available spare parts and technical support.

• Flexible Acquisition: The HT-B0104 hot tapping machine is available for sale or through rental programs to suit your operational and budgetary needs. Contact us for the latest price and to discuss your project.

Frequently Asked Questions (FAQ)

Q1: Can the HT-B0104 machine truly operate without shutting down the pipeline?

A: Yes, that is the primary function of any hot tapping machine. The HT-B0104 is specifically designed and pressure-rated to safely cut into pipelines that are under pressure and in full service, following a proven procedure with isolating fittings.

Q2: What is the maximum wall thickness it can cut through?

A: The machine’s capability is defined by its 550mm spindle stroke. The maximum cut depth depends on the cutter assembly used, but this stroke accommodates standard and heavy-wall pipes for taps up to DN100. Specifics should be confirmed based on your pipe specifications.

Q3: Do you provide training for operating this equipment?

A: Absolutely. We strongly recommend and provide comprehensive training covering machine operation, safety protocols, maintenance, and the hot tapping procedure. This ensures safe, effective use and maximizes the return on your investment.

Your Trusted Partner in Pipeline Solutions: JSW Pipeline Services

At JSW Pipeline Services, we combine deep industry expertise as a hands-on contractor with the precision engineering of a dedicated equipment manufacturer. We understand the challenges faced by pipeline companies because we’ve been in the field. This dual perspective is built into every HT-B0104 machine we produce—equipment designed by practitioners for practitioners.

Our service philosophy extends beyond the sale. We offer end-to-end support, from initial technical consultation and custom fitting design to training and ongoing maintenance. We provide not just tools, but complete systems and solutions that enhance safety, efficiency, and profitability for our clients worldwide.

Ready to enhance your pipeline maintenance capabilities with reliable hot tapping technology?
Contact JSW Pipeline Services today for a detailed quote, technical specifications sheet, or to schedule a consultation with our engineering team. Let us provide the solution for your next in-service pipeline project.

Optional Accessories

Hot Tapping Coupler

Note: The connection dimensions of the coupler can be customized according to user requirements.

Hole Cutter
